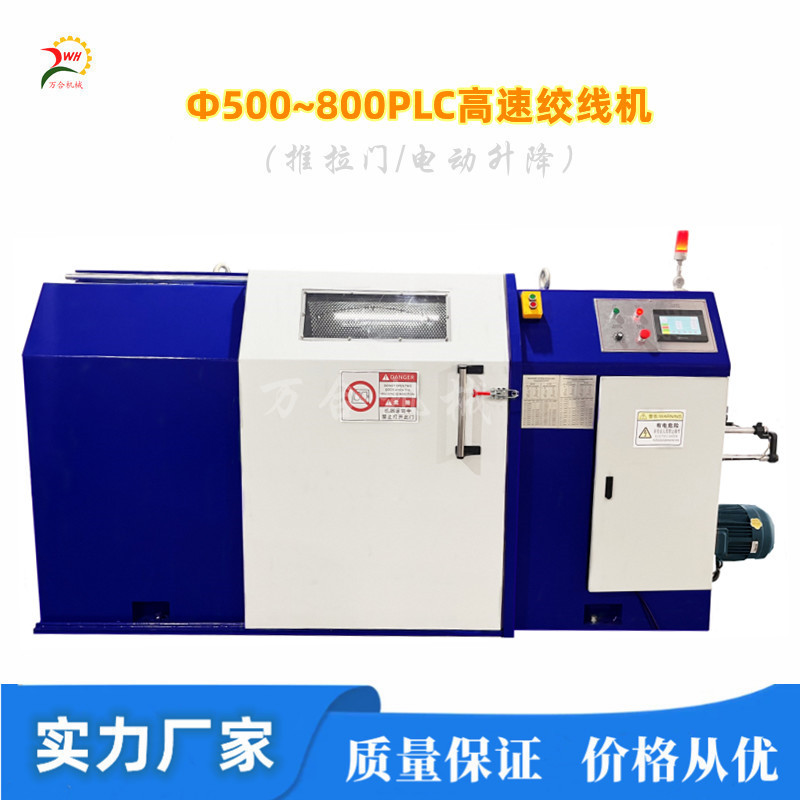

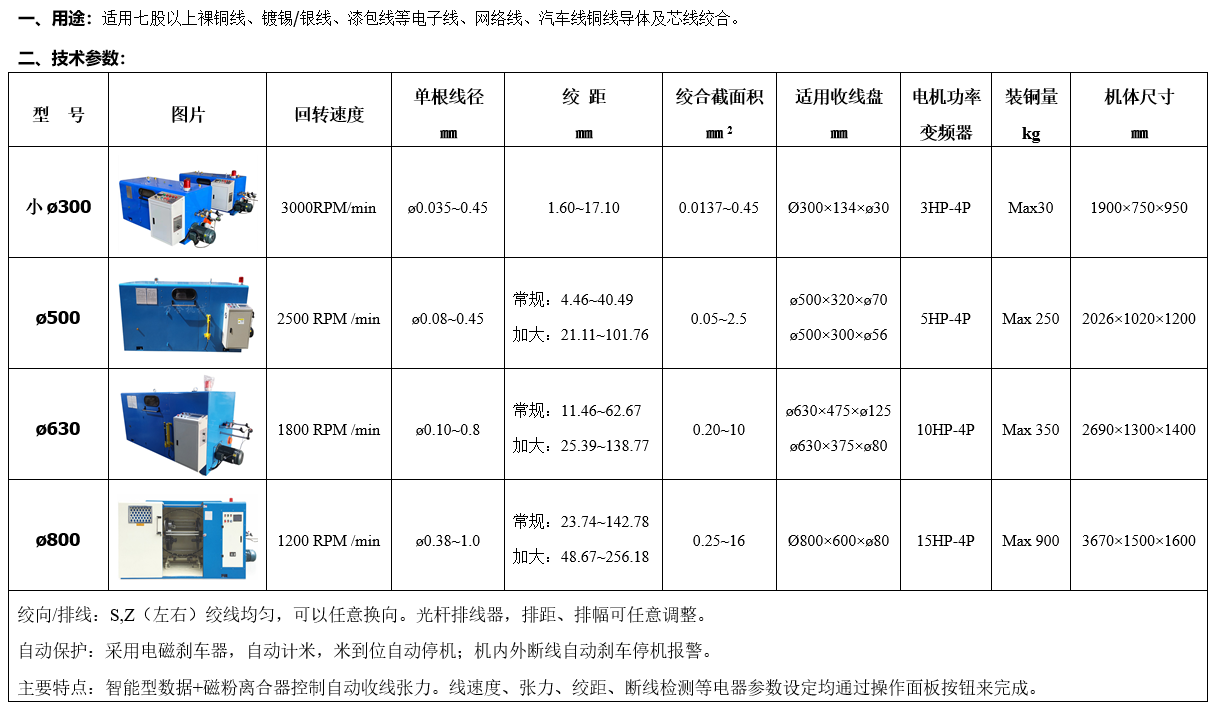

驅動馬達

Drive motor

20HP Motor+

Frequency adjust speed

30HP Motor+

Frequency adjust speed

單根線徑

Diameter of each wire

Φ0.38~1.0㎜

Φ0.38~2.14㎜

絞合截面積

Stranded cross-sectional area

0.25~10mm2

1.5~16mm2

絞   距

Twist pitch range

標準絞距Standard lay length：23.74～142.78mm

加大絞距Maximum lay length：48.67~256.18mm

35~200㎜

線盤裝銅量

Weight of conductor on reel

MAX900㎏

MAX1200㎏

機械尺寸

Mechanical Dimensions

L3675×W1550×H1650㎜

L4475×W2200×H2300㎜

機械重量

Machine net weight

5000㎏

8000㎏

絞 向

Twisting direction

左右絞向均勻，“S” or “Z” direction

使用電源

Voltage frequency

50HZ/380V（三相五線Three-phase five-wire）

排線裝置

Cable device

加強型精密光桿排線器，排輻、排距均可調整

Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will

收線張力

Take-up tension

磁粉離合器控制張力、大小可調節，被拉線不變型。

The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape.

保護功能

Protective function

⑴長度到達設定參數自動停機

The length meter will automatically stop when it reaches the set parameters;

⑵設備內部和外部斷線，自動停機報警The internal and external disconnection of the equipment will automatically stop and alarm;

⑶安全罩打開自動停機

It will stop automatically when the lift is incorrect

⑷升降不正確自動停機

It will stop automatically when the safety cover is opened。

⑸紅色警示燈：故障停機

Red warning light: shutdown due to failure
