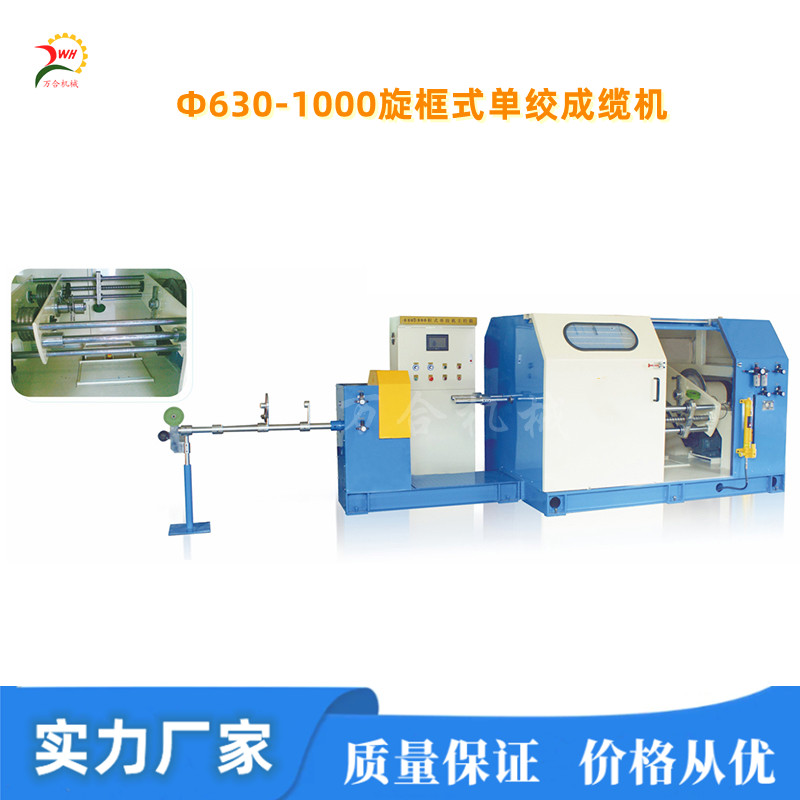

Φ630~1000旋框式單絞成纜機

Φ630~1000 Rotary frame type single twisting cabling machine

一、用途：

適用于各類電源線、數據纜、控制電纜以及其他特種線纜的芯線絞合成纜，并同時完成中心包帶及側放包帶。

.Application：

It is suitable for stranding of cores of various types of power cables, data cables, control cables, and other special cables, and it also completes the center strap and the side strap.

二、設備組成：

由放線架（主動放線+被動放線+退扭主動放線）、單絞機主機、中心包帶機、側放包帶、計米裝置、電控系統等組成。

B. Structure of Equipment：

Take-off line (active line, passive line, retreat initiative line), single twist machine host, center tape machine, side of the bag, meter device, electronic control system.

三、技術特點：

1．放線裝置由兩臺雙盤放線架組成，可形成“一”字型生產線或“日”字型生產線。

2．主動放線采用PLC全電腦控制，恒張力控制，保證四對絞線絞合均勻，節距穩定。

3．單節距絞合，絞合節距穩定，有齒輪絞距和電腦絞距兩種機型，可根據需要進行選擇。

C. Equipment advantages：

1. The pay-off device is composed of two sets of double coil pay off frames, which can form a "one" shaped production line or a "day" shaped production line.

2. PLC full computer control and constant tension control are adopted for active setting out to ensure even stranding and stable pitch of four pairs of stranded wires.

3. Single pitch stranding, stable stranding pitch. There are two types of stranding pitch: gear stranding pitch and computer stranding pitch, which can be selected according to needs.

四、技術參數Technique specifications：
